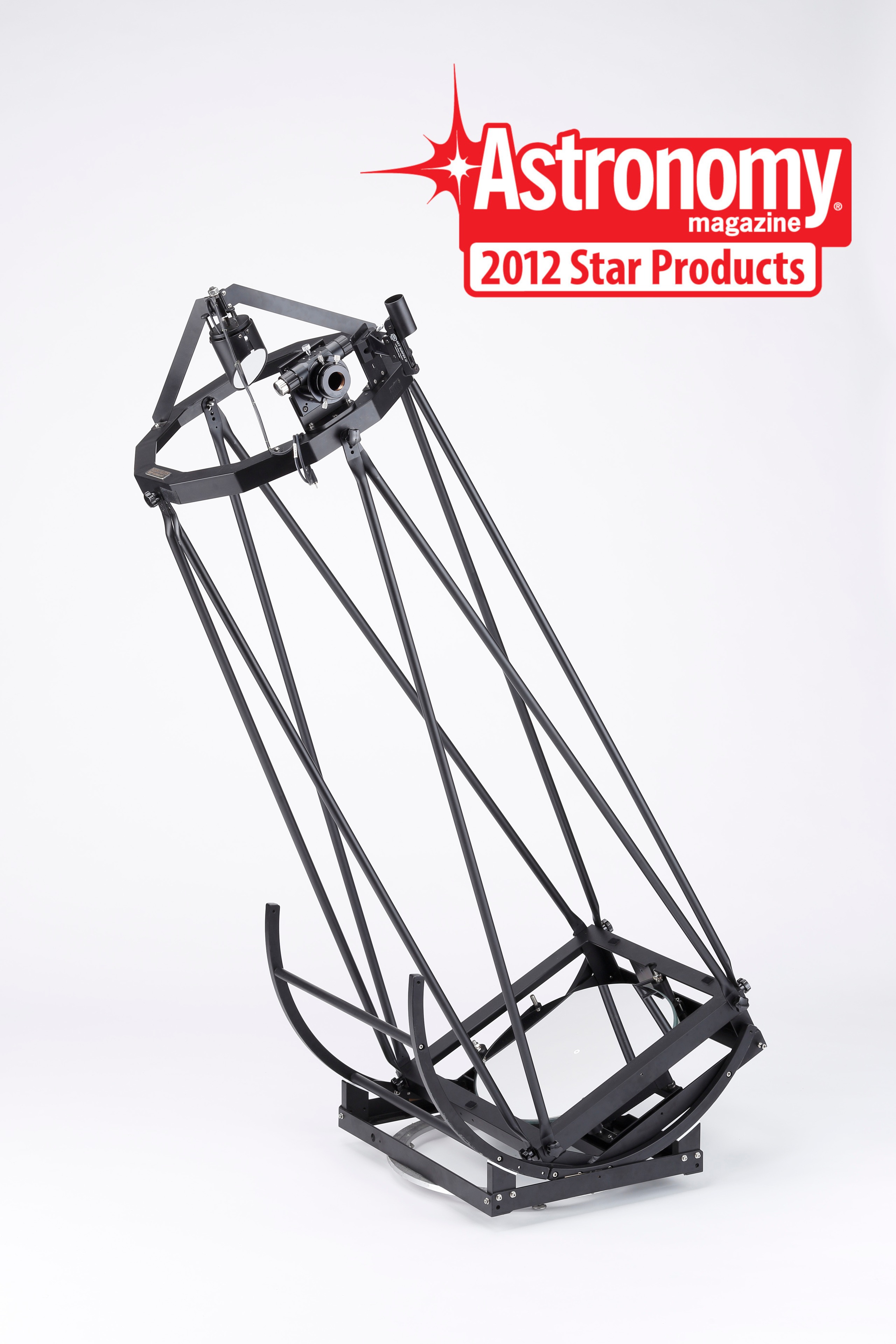

The ultimate marriage of portability and power. Featuring our revolutionary sandwich mirror technology,
enhanced optical coatings, and all-metal CNC-machined construction. Fully assembled weight: just 65 lbs.
f/5: $2,395
USD
f/4.5: $2,695
USD
Deposit (50% of base system)
Sandwich Mirror
Lightweight
All Metal
Dual-Speed Focuser
Aperture
406mm (16")
Focal Ratio
f/4.5 or f/5
Mirror
Sandwich
Weight
65 lbs
Exclusive Sandwich Mirror Technology
The lightweight sandwich mirror design cools dramatically faster than solid mirrors, minimizing thermal
gradients and eliminating a major source of image distortion. Unlike fan-based cooling, this passive
design achieves rapid and stable thermal equilibrium naturally — without introducing vibration.
Why this matters
One of the primary limitations in large-aperture telescopes is "mirror seeing" — turbulence caused by
temperature differences between the mirror and the surrounding air. In changing conditions, a thick
solid mirror may never fully reach equilibrium, preventing it from achieving its full optical
performance. The sandwich mirror design minimizes this effect, allowing the system to reach optimal
performance quickly and consistently, delivering sharper and more stable views without the need for
active cooling.
Enhanced Optical Coatings
96% enhanced reflective coatings on both primary and secondary mirrors with precision-controlled
dielectric layers. Maximum light throughput for bright, contrast-rich images on deep-sky targets.
Engineered Mirror Support
Optimized 6-point flotation system with completely independent sling lateral support and collimation.
Eliminates the potato-chip astigmatism found in simpler designs.
All Metal Construction
CNC-machined 6063-T6 aluminum alloy truss tubes, structural steel mirror cell, and aluminum alloy OTA
and mount structure. Finished with environmentally friendly black powder coating.
Sharper images with about 30% less coma — no coma corrector needed at all. Smaller central obstruction
(2.76" vs 3.1" for f/4.5). And you save $500.
Advantages of f/4.5
No ladder needed for most people — the eyepiece stays conveniently close to the ground. Wider field of
view for sweeping panoramic observations.
Both f/5 and f/4.5 provide excellent views. The f/5 is perfect for the most demanding observer without a coma
corrector. The f/4.5 provides a wonderful wider view. With our unique two-section truss tubes for f/5, both are
equally portable and strong. Please note that some counter weight will be required for f/5 at the bottom (not
provided).
"I purchased a 16inch F4.5 last year and I'm extremely happy with how it performs. It was clear the optics
were very good from the first night. Stars beautifully resolved into the core of 47 Tucanae."
Damien Kilmartin
"I want to express my admiration for your excellent optics. It gave us a lot of pleasant hours under the
southern stars."
Add these when ordering, or contact us at info@hubble-optics.com
View all 12 accessories
Carbon Fiber Truss Tubes
$800
Elegant, stronger, and lighter Carbon Fiber Truss Tubes.
Red Dot Finder Scope
$45
Light weight Red Dot Finder with brackets and dovetail. Simple, effective, and easy to adjust. Free
shipping with system.
8x50 Illuminated Finder Scope
$100
Top quality 50mm achromatic finder with dovetail bracket. Scale markings and adjustable red illumination.
+$25 shipping.
Truss Tube Grips
$7 each
0.9m cushioned vinyl foam grips — insulate, cushion vibration, and protect the truss tubes. Free shipping
with system.
Shroud
$120
Top quality Nylon/Lycra blend. Blocks stray light for better contrast. Free shipping with system.
Wheelbarrow Handle
$250
Stainless steel handles with two 6" pneumatic tires and ball bearings. Includes $100 shipping. Order with
system only.
Truss Tube Carry Bag
$60
Deluxe waterproof Nylon bag with draw-string cord. Free shipping with system.
5-Star Artificial Star
$22
Essential collimation tool. Free shipping when ordered with system.
Scope Storage Cover
$120
Polyurethane-coated nylon — light reflecting, water and dust resistant. Full protection in storage and in
the field. Free shipping with system.
Mirror Cover
$45
Strong plastic mirror cover. Free shipping with system.
Light Baffle
$50
Reduces stray light for improved contrast. Free shipping with system.
SkyHub Wireless DSC
$249 + $45 S&H
Wireless Digital Setting Circle with high resolution, low power ball bearing encoders.
Learn more
No fan needed — our sandwich mirror reaches thermal equilibrium without one.
There's a 50% deposit for the base system, and the full payment for the optional accessories at the order
time. The rest including shipping will be paid before the delivery (about 60 days after the deposit) via a
PayPal invoice.
UL16 will be shipped in 3 boxes: the main structure, the truss tubes and the primary mirror.
Country
Regular (US$)
US
672
US (Hawaii)
722
Australia
625
Austria
610
Belgium
635
Brazil
1790*
Canada
610
Chile
870
Denmark
610
France
610
Germany
610
Israel
618
Italy
610
Japan
420
Korea, South
405
Mexico
715
Netherlands
615
New Zealand
615
Norway
615
Philippines
322
Poland
640
Portugal
715
Romania
690
Russia
990
Singapore
378
South Africa
775
Spain
650
Sweden
620
Switzerland
590
Taiwan
380
UK
610
* Shipped via FedEx, the exact cost depends on your specific address.
