Hubble SkyHub2S WiFi, Bluetooth & USB Wireless/Wired Digital Setting Circle

Hubble SkyHub2S with our revolutionary encoders. Now with three ways to connect: Ad-Hoc WiFi, Bluetooth, and all-new USB/Serial support. Works with Android, Windows, Mac, and iOS devices. In USB mode the unit is powered directly by your computer — no external battery required. Note: iOS devices connect via WiFi only (Apple does not support Bluetooth serial). The Android Tablet and Sky Safari in the picture are NOT included.

$249 USD

+ $45 shipping & handling

Bracket Size

Includes the complete DSC System with receiver, encoders, brackets, cables, and battery cage. SkyHub2S is sold and shipped as a kit; some easy assembly is required. Shipped in about 2 weeks after the order.

SkyHub2S adds USB/Serial support, so wireless is no longer required to use a digital setting circle — just plug it in and observe. WiFi and Bluetooth are still fully supported whenever you want them.

SkyHub-B

The original Hubble digital setting circle. Bluetooth connection to Android and Windows devices.

SkyHub2

Added Ad-Hoc WiFi on top of Bluetooth, opening up iPad, iPhone, and Mac alongside Android and Windows.

SkyHub2S — New

Added USB/Serial support — no wireless pairing, no dropouts, no battery pack. Plug it into any Windows, Mac, or Linux computer and start observing. WiFi and Bluetooth are still fully supported when you want them.

WiFi, Bluetooth & USB Connectivity

Works with Sky Safari on iPad/iPhone/iPod via WiFi, with Android and Windows devices via Bluetooth, and now with Windows, Mac, and Linux via new USB/Serial support. Thanks to David Ek's ASCOM DSC driver, enjoy TheSky, Sky Map Pro, ECU, Cartes du Ciel, and Stellarium on Windows.

New USB/Serial Support

Plug SkyHub2S directly into your Windows, Mac, or Linux computer with a USB cable — no wireless setup, no dropouts, and the host computer powers the unit so you don't need a battery pack. A built-in mode switch lets you disable wireless for clean, interference-free USB operation.

Simple Star Alignment

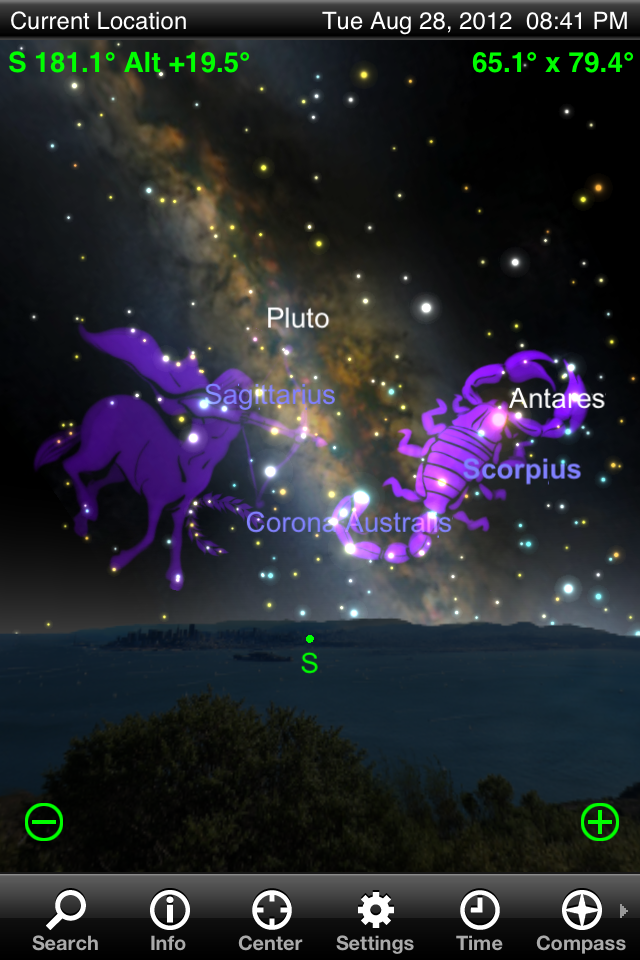

Point your scope to any star, touch the same star on Sky Safari to complete a one-star alignment. Then touch any target on screen and move your scope until the position mark meets the target — done! Optionally perform a two-star alignment at any time for better accuracy.

Revolutionary Encoders

High resolution 8192 PPR, extremely compact, and highly energy efficient ball bearing encoders. 80% more power efficient and only about 15% the size of a traditional encoder. Powered by a 5VDC USB battery bank — expect about 100 hours of operation from a 15,000mAh battery.

Massive Object Database

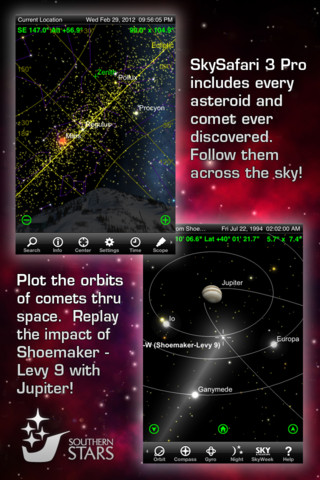

Sky Safari Pro features 15.3 million stars, 740,000 galaxies, and 550,000 solar system objects, including every comet and asteroid ever discovered. Find any satellite or comet with ease.

Connectivity	Bluetooth V4.2, Ad-Hoc WiFi, and USB/Serial
iOS & Mac Support	Sky Safari on iPad/iPod/iTouch/iPhone via WiFi; Mac Book via WiFi or USB
Windows Support	Works with many Windows-based planetarium software packages via USB, WiFi, or Bluetooth
Android Support	Works with Sky Safari on Android devices via Bluetooth or WiFi
Linux / UNIX Support	Via USB/Serial connection
Power	5VDC external USB power bank, or bus-powered when connected to a host via USB
LED Indicators	Power LED (always on); Status LED flashes 1× for Bluetooth, 3× for WiFi, 2× for USB-only mode; continuous flashing signals low voltage
Encoders	Two revolutionary 8192 PPR, low power consumption, ball bearing encoders
Included	Encoder cables, encoder adapter brackets for Hubble UL14, 16, 18, and 20
Package Contents	Two 8192 high resolution encoders, encoder cables, all necessary mounting brackets, power cables, and 9V external battery box

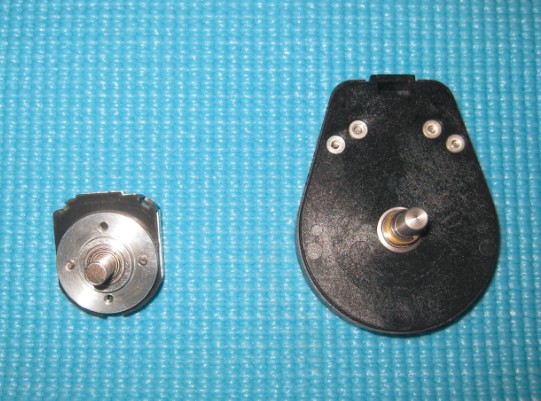

SkyHub encoder compared to traditional encoder

Our revolutionary 8192 PPR low power consumption ball bearing encoder vs. a traditional encoder

UL16 telescope with SkyHub and Stellarium in action

Stellarium Key Features

Default catalogue of over 600,000 stars with extra catalogues of 210+ million stars. Asterisms and illustrations of constellations for twelve different cultures. Full Messier catalogue of nebulae images, realistic Milky Way, realistic atmosphere with sunrise and sunset, planets and their satellites, and much more.

Compatibility Notice

Hubble SkyHub2S should be compatible with most Android devices with built-in Ad-Hoc WiFi and/or Bluetooth profile supporting Bluetooth 2.0 or higher, and with any Windows, Mac, or Linux computer with a free USB port. In case your device is not compatible, please try another device of a different model or brand. We honor a full refund if you need to return the system. Please determine compatibility before installing the system to your scope. The returned unit must be in original (sellable) condition. The MS Windows applications support is provided "AS IS". It works with Sky Safari on iPad/iPod/iTouch/iPhone via WiFi.
