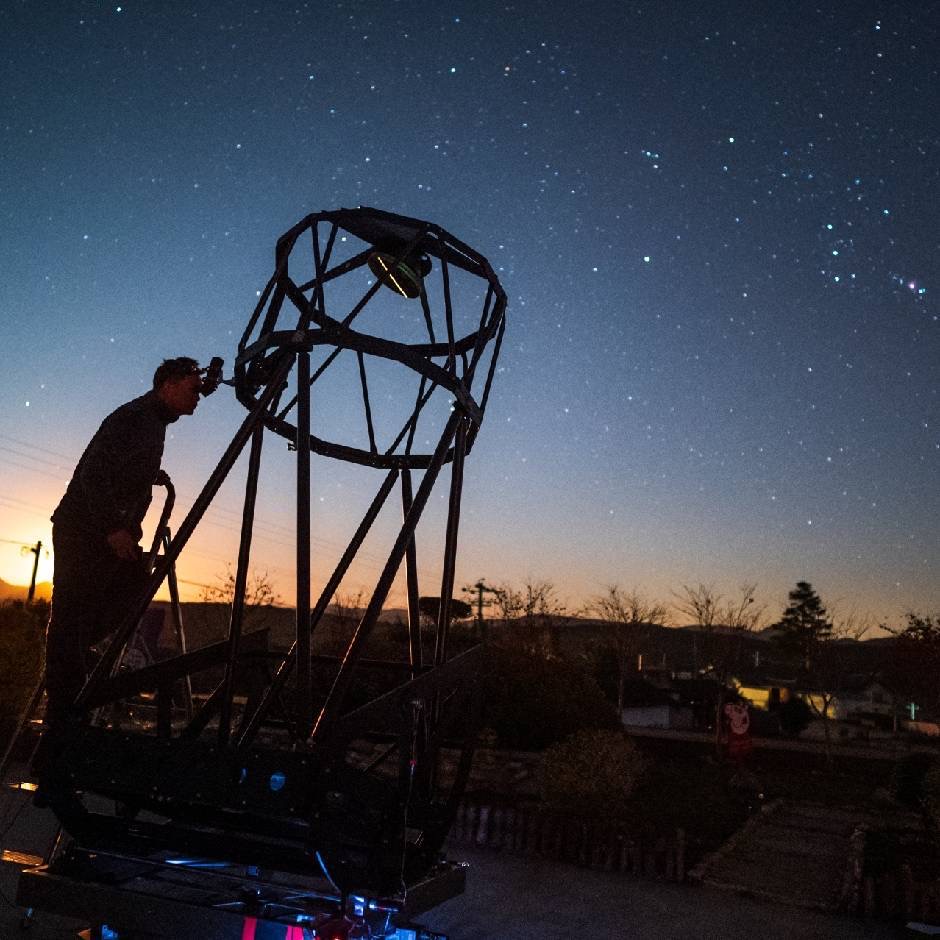

UL40SO 40" f/3.3 Observatory-Class Telescope

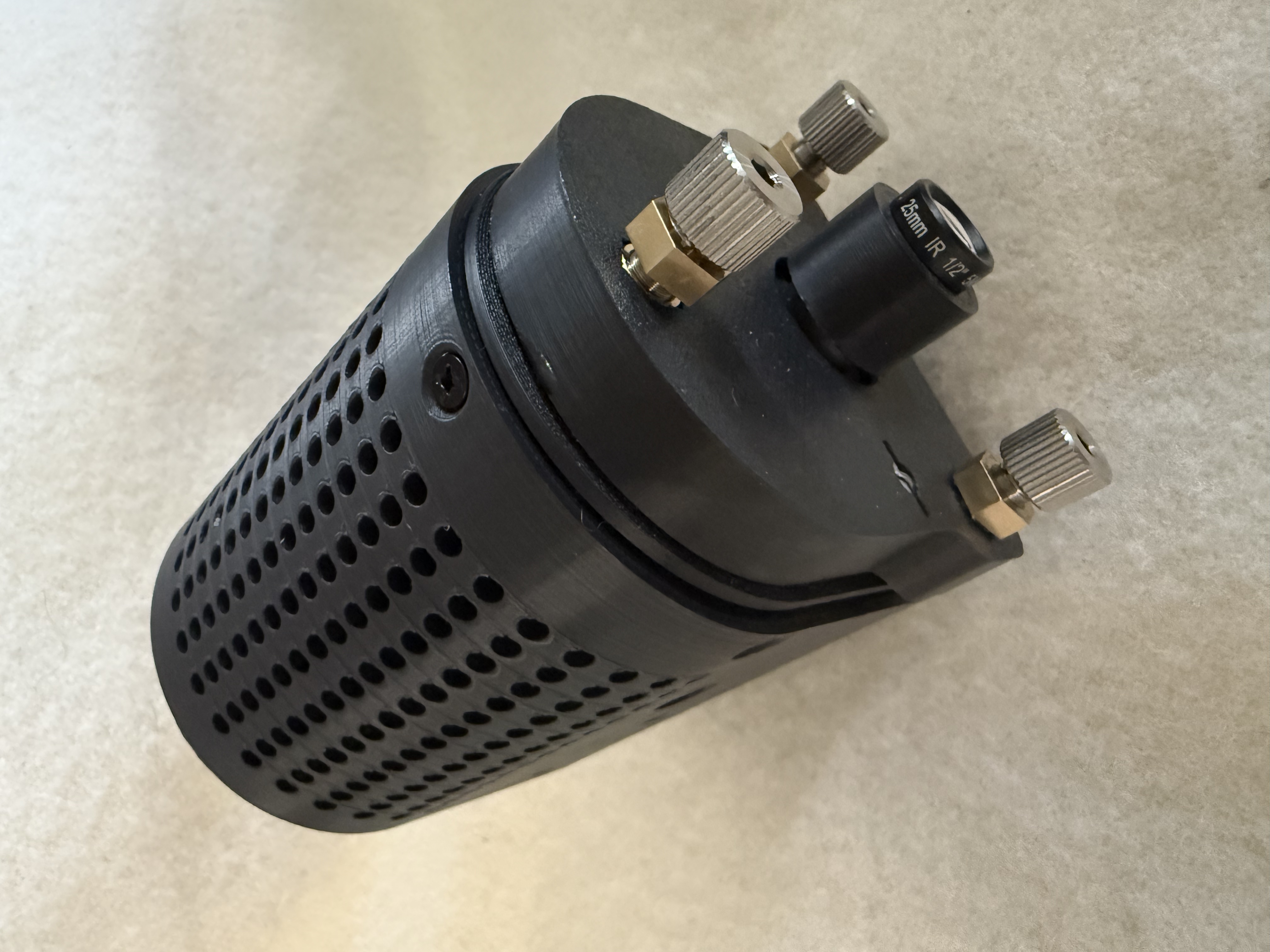

SkyHub Pro Smart Finder, Intelligent Observing Assistance

The integrated SkyHub Pro Smart Finder adds intelligent pointing and observing assistance to the UL40SO. Featuring a dedicated high-speed imaging module, the Smart Finder enables one-button automated alignment with integrated plate solving, reducing the need for manual star centering.

Real-Time Star Show Experience

Dynamically generated "Star Shows" create observing sessions based on your location, date, and current sky conditions. Examples include Messier Marathon, Galaxy Evolution, and Tonight's Best. Each session is intelligently optimized to maximize observing time and minimize unnecessary slewing. Every observing session is uniquely generated, so no two nights are ever the same.

Live Stacking & Processing

Advanced real-time image processing with sigma-clipping, HDR stretching, and progressive stacking reveals faint deep-sky objects within seconds. Planetary imaging includes multi-layer wavelet sharpening for high-resolution detail extraction.

System Integration

The system supports dual-camera operation, FITS export, a 10,000+ object database, and real-time visibility calculations. The Smart Finder system helps coordinate the observing workflow and handles technical complexity so you can focus on exploring the universe.

Exclusive Sandwich Mirror Technology

The lightweight sandwich mirror design reaches thermal equilibrium dramatically faster than a solid mirror of the same aperture, minimizing the thermal gradients that cause image distortion. The structure itself is passive, so it never introduces vibration into the optical path.

Why this matters

One of the primary limitations in large-aperture telescopes is "mirror seeing," the turbulence caused by temperature differences between the mirror and the surrounding air. A thick solid mirror may never fully reach equilibrium in changing conditions, preventing it from achieving its full optical performance. For smaller apertures, the sandwich design typically requires no active cooling. At 40 inches, the scale of the system makes ambient shifts more significant, particularly where temperatures change rapidly between day and night. Active pre-conditioning brings the mirror close to ambient before observation, and the lightweight structure then maintains stable performance passively during the session. In practice, diffraction patterns stabilize within tens of minutes rather than requiring hours of cooling.

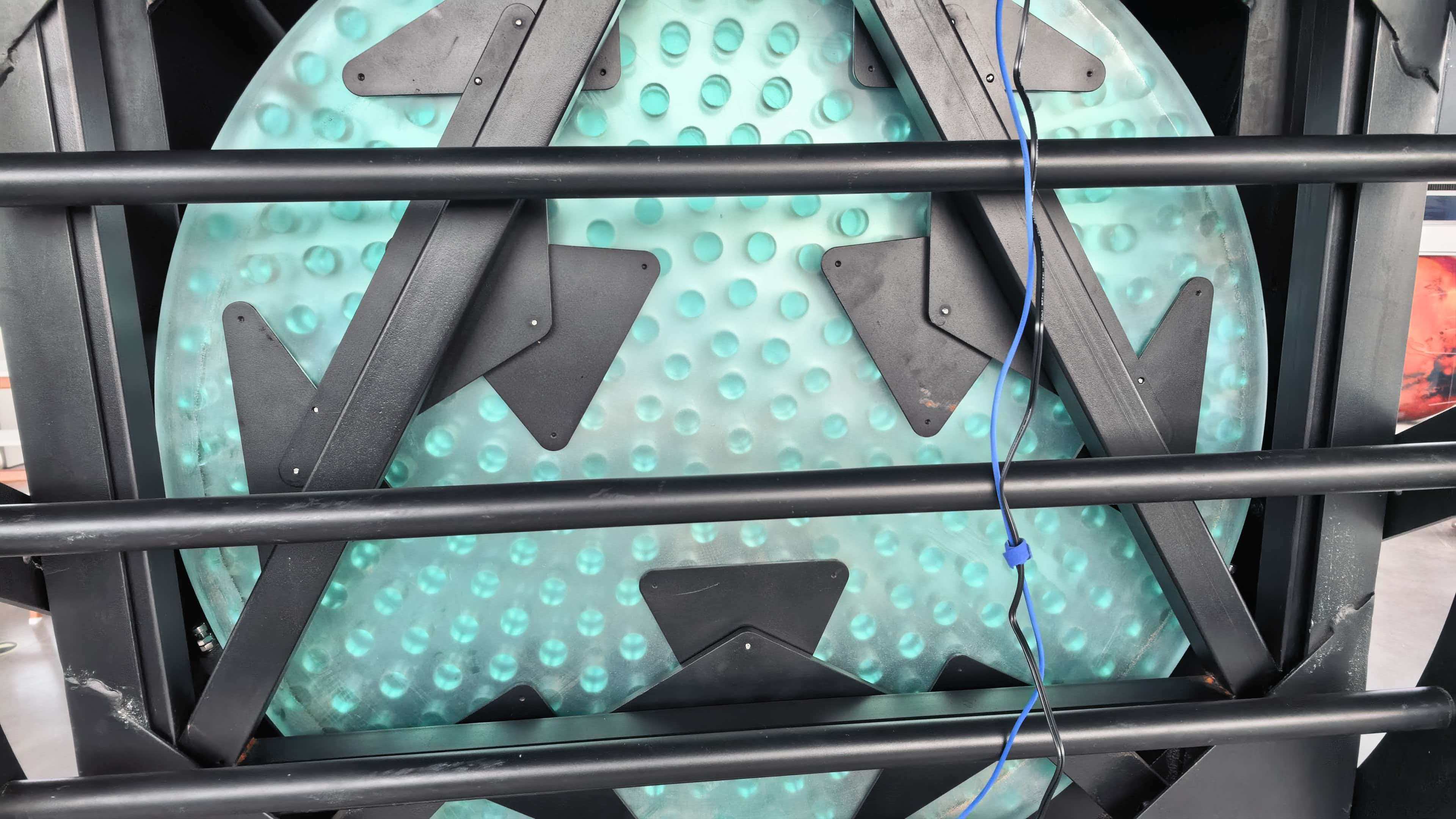

27-Point Flotation Mirror Cell

Fully engineered flotation mirror cell with sling lateral support and 90-degree pivoting edge supports. Ensures uniform mirror support, eliminates stress-induced deformation, and prevents "potato chip" astigmatism. The mirror cell is completely independent from the collimation system.

Enhanced Optical Coatings

96% enhanced reflective coatings on both primary and secondary mirrors with precision dielectric overcoats. Maximum light throughput, improved contrast and brightness, with excellent durability and environmental protection.

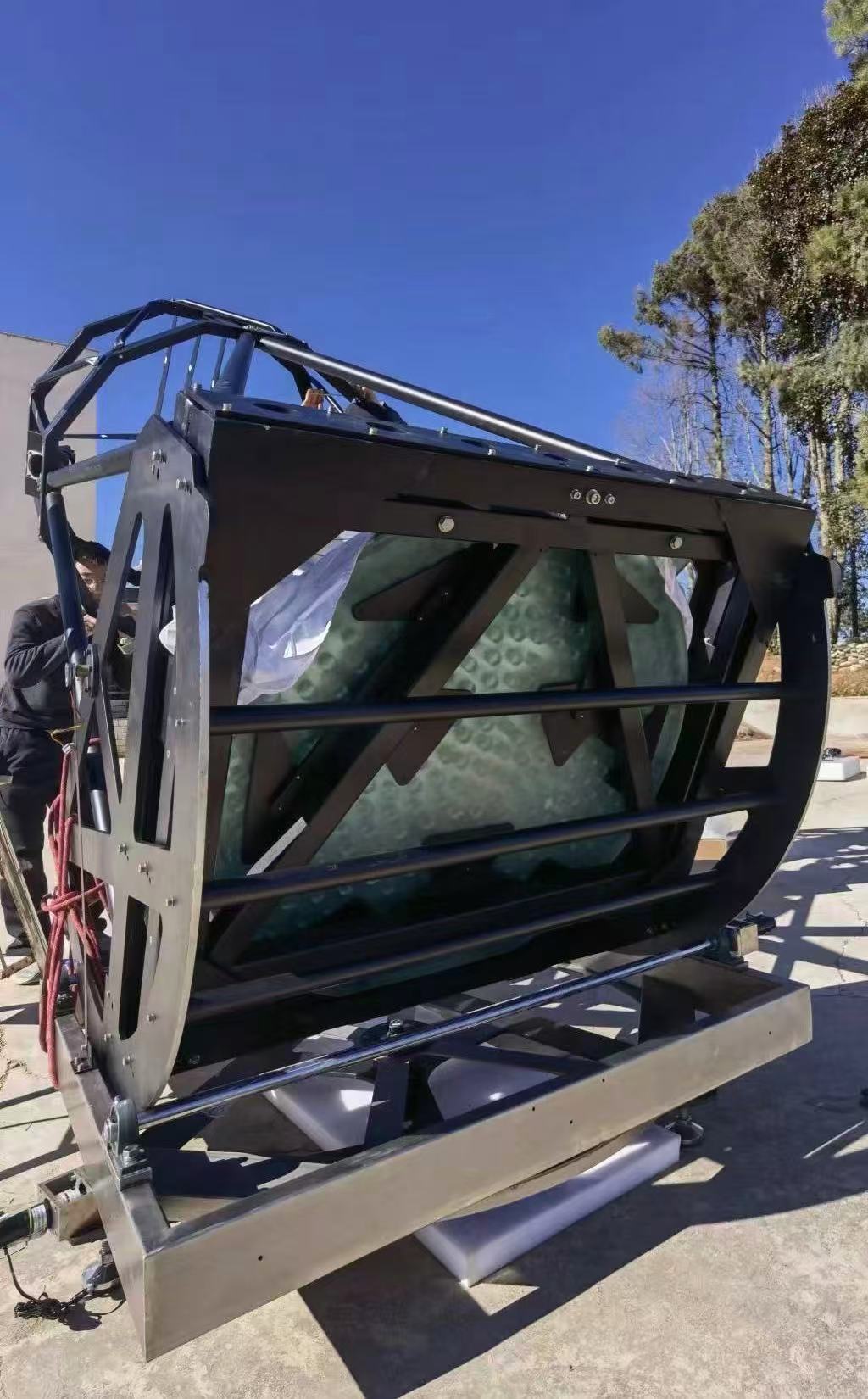

All-Metal Observatory-Grade Construction

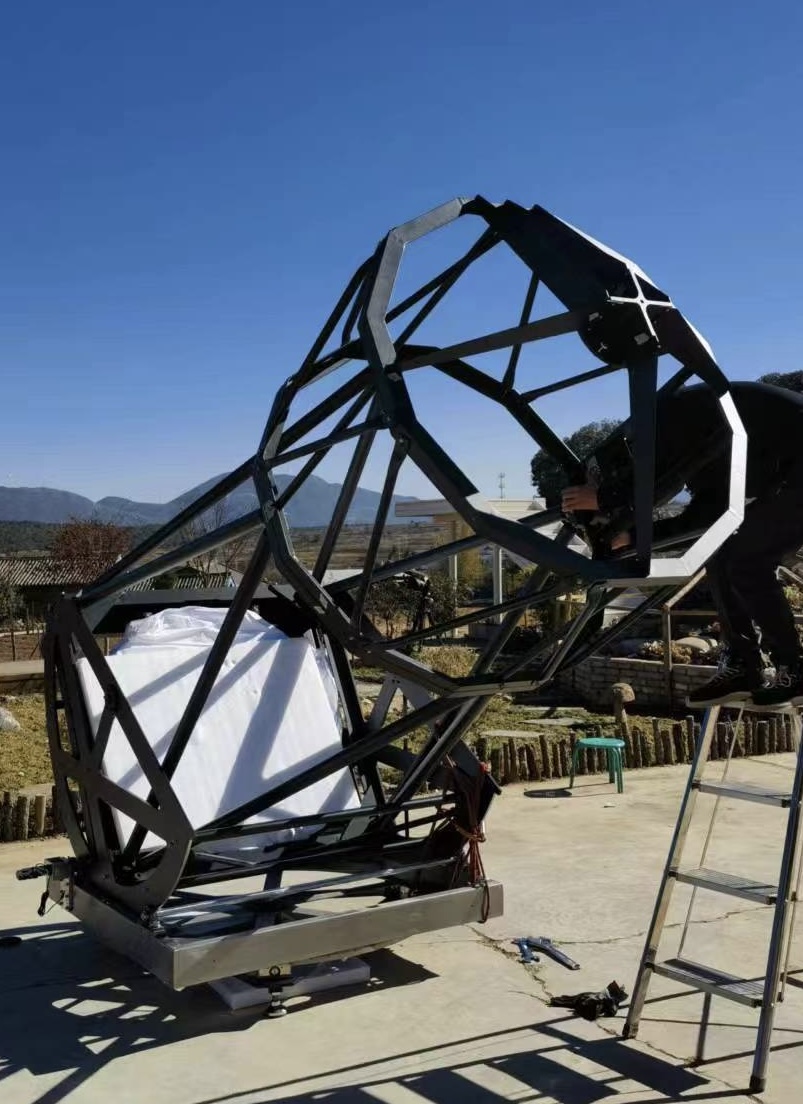

CNC-machined components with FEA-optimized structural design. 6063-T6 aluminum truss system, steel mirror cell, aluminum alloy OTA and mount, and stainless steel rocker. Extremely rigid, mechanically stable, and built for long-term observatory use.

Advanced GoTo Control System

State-of-the-art OnStep or SiTech controller with WiFi, Bluetooth, INDI/ASCOM support. Compatible with SkySafari, Stellarium, and more. Includes dedicated smart hand controller with ~30,000 objects, sidereal/lunar/solar tracking, and park/unpark functions.
