Premium Ultra Light GoTo Series

UL18g 18" Premium Ultra Light GoTo Dobsonian

The power of an 18" aperture with state-of-the-art OnStep GoTo — find and track any of 30,000+ objects automatically via WiFi, Bluetooth, or the Smart Hand Controller. All-metal CNC construction with folding ALT bearing for extreme portability.

f/4.5: $5,595 USD

f/4: $6,095 USD

Deposit (50% of base system)

Sandwich Mirror GoTo Tracking All Metal Dual-Speed Focuser

Aperture

457mm (18")

Focal Ratio

f/4 or f/4.5

Mirror

Sandwich

Weight

~84 lbs

OnStep GoTo Controller

State-of-the-art GoTo system designed by Howard Dutton with built-in WiFi and Bluetooth. Access 30,000+ objects via the Smart Hand Controller, Sky Safari, Stellarium, or ASCOM/INDI drivers. Features telescope encoders, real-time clock, advanced multi-star alignment, and sidereal/lunar/solar tracking rates.

Exclusive Sandwich Mirror Technology

The lightweight sandwich mirror design cools dramatically faster than solid mirrors, minimizing thermal gradients and eliminating a major source of image distortion. Unlike fan-based cooling, this passive design achieves rapid and stable thermal equilibrium naturally — without introducing vibration.

Why this matters

One of the primary limitations in large-aperture telescopes is "mirror seeing" — turbulence caused by temperature differences between the mirror and the surrounding air. In changing conditions, a thick solid mirror may never fully reach equilibrium, preventing it from achieving its full optical performance. The sandwich mirror design minimizes this effect, allowing the system to reach optimal performance quickly and consistently, delivering sharper and more stable views without the need for active cooling.

Enhanced Optical Coatings

96% enhanced reflective coatings on both primary and secondary mirrors with precision-controlled dielectric layers. Maximum light throughput for bright, contrast-rich images on deep-sky targets.

18-Point Mirror Flotation

Optimized 18-point flotation system in a real mirror box with completely independent Push-Pull collimation and sling lateral support. Eliminates potato-chip astigmatism found in simpler designs. Safe mirror protection and easy transportation.

All Metal Construction

CNC-machined 6063-T6 aluminum alloy truss tubes, structural steel mirror cell, and aluminum alloy OTA and mount structure. 8 rigid truss tubes with folding ALT bearing for extreme portability. Finished with environmentally friendly black powder coating.

Wireless Connectivity

WiFi 802.11n with built-in web interface accessible from any browser. Bluetooth 4.2 for direct wireless support with Sky Safari and Stellarium. ASCOM drivers with IP and Serial support under LX200 protocol. INDI drivers for CdC, KStars, and Ekos.

Smart Hand Controller

Fully featured hand controller with ~30,000 objects. Complete scope control including initialization, configuration, alignment, and movement (Slewing and GoTo). iOS and Android virtual handpad apps also available.

Precision Tracking

Telescope encoders for extra accuracy in pointing and tracking. Real-time clock module. Advanced 1-9 star alignment (3 stars usually gives good results). Sidereal/Lunar/Solar tracking rates. Slewing rates up to 4 degrees per second. Park/Unpark and spiral search functions.

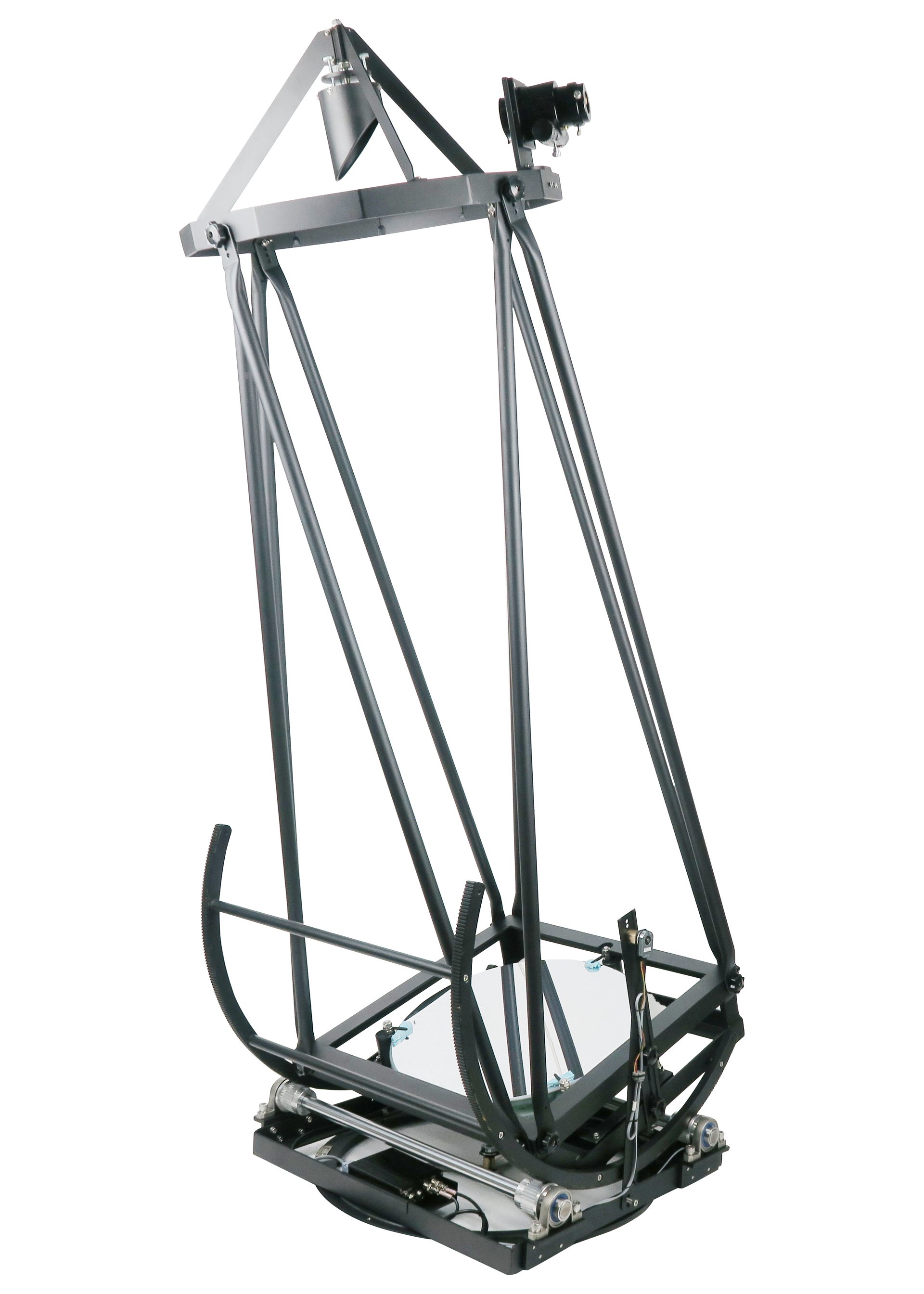

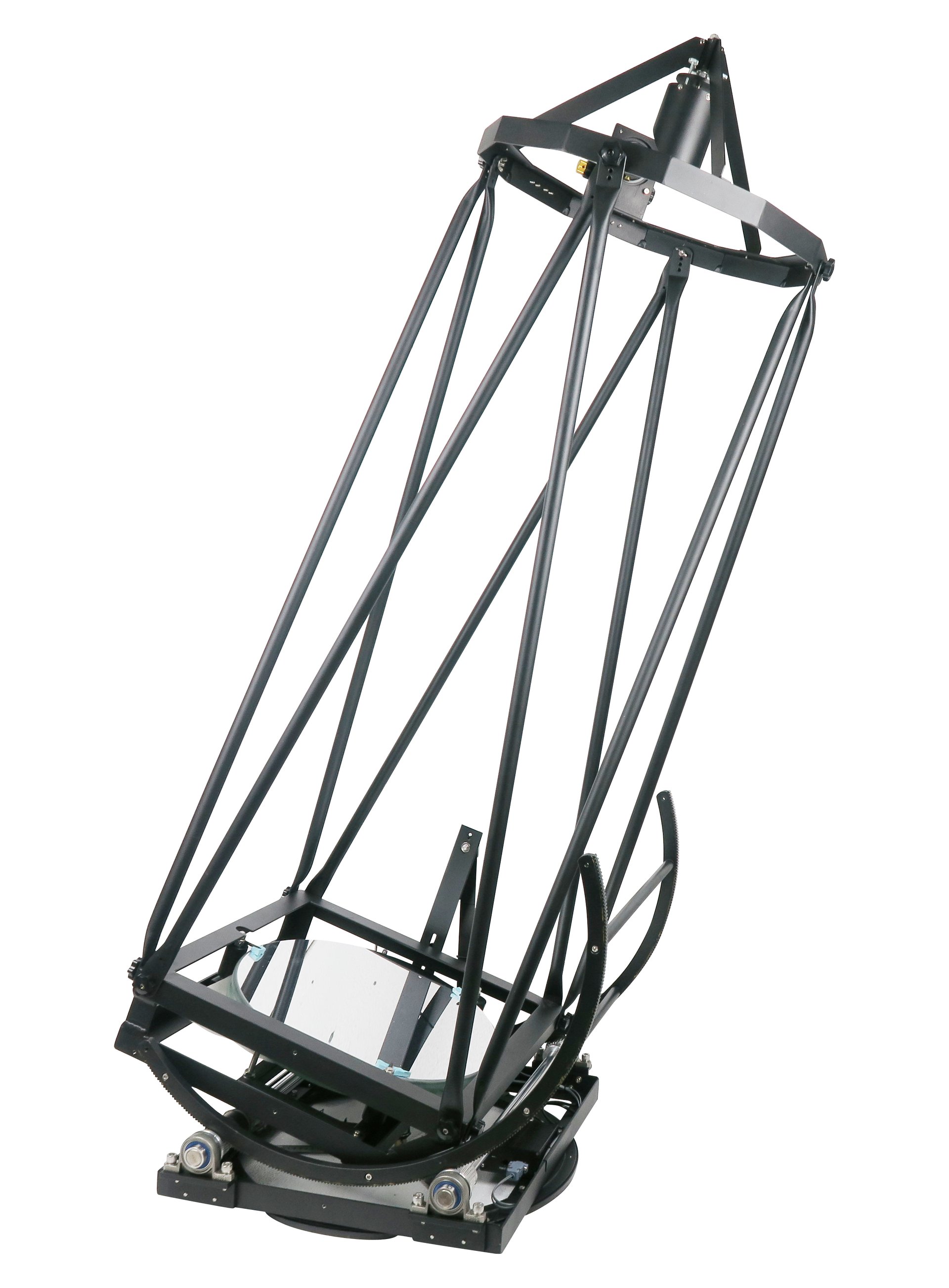

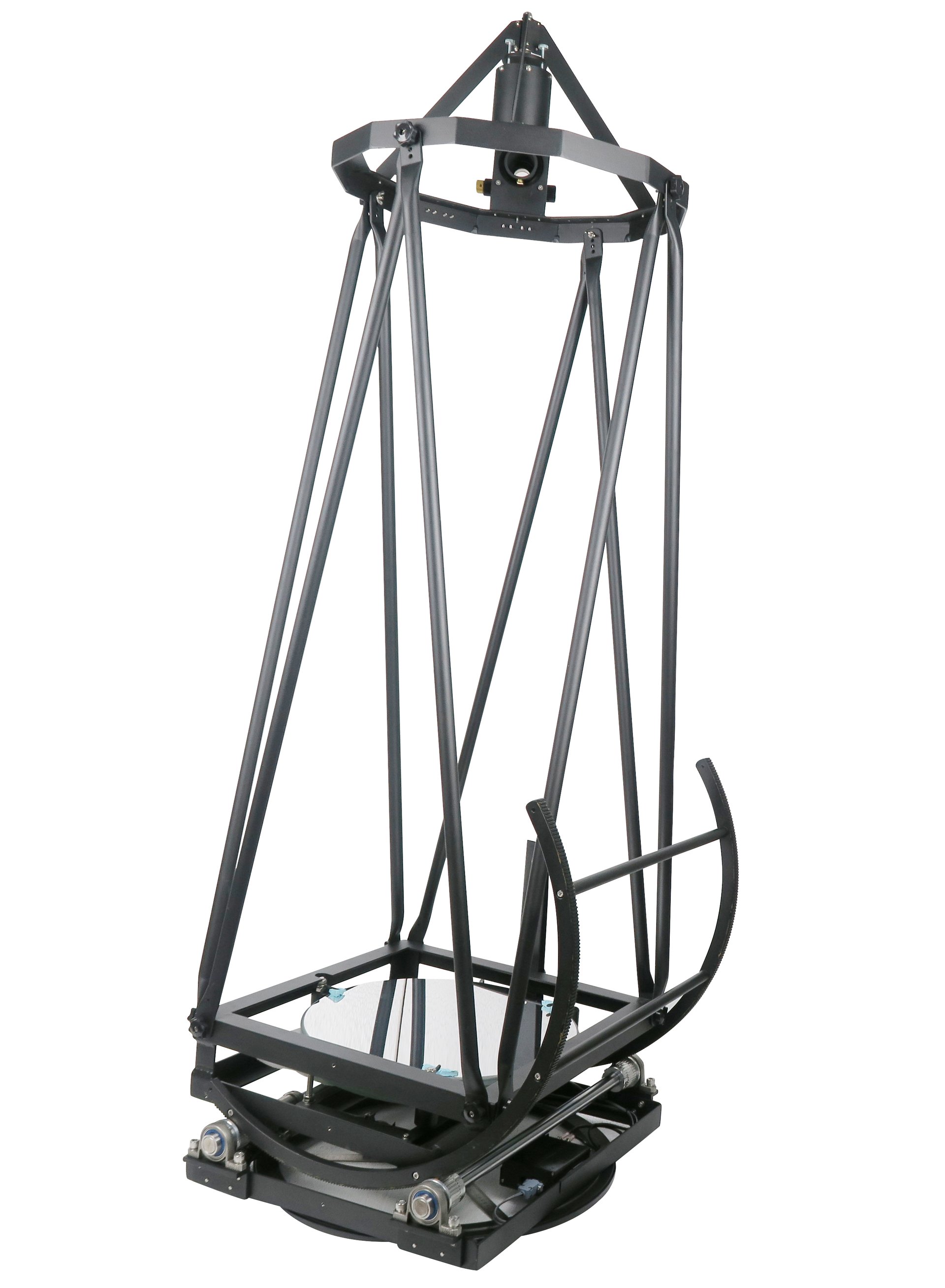

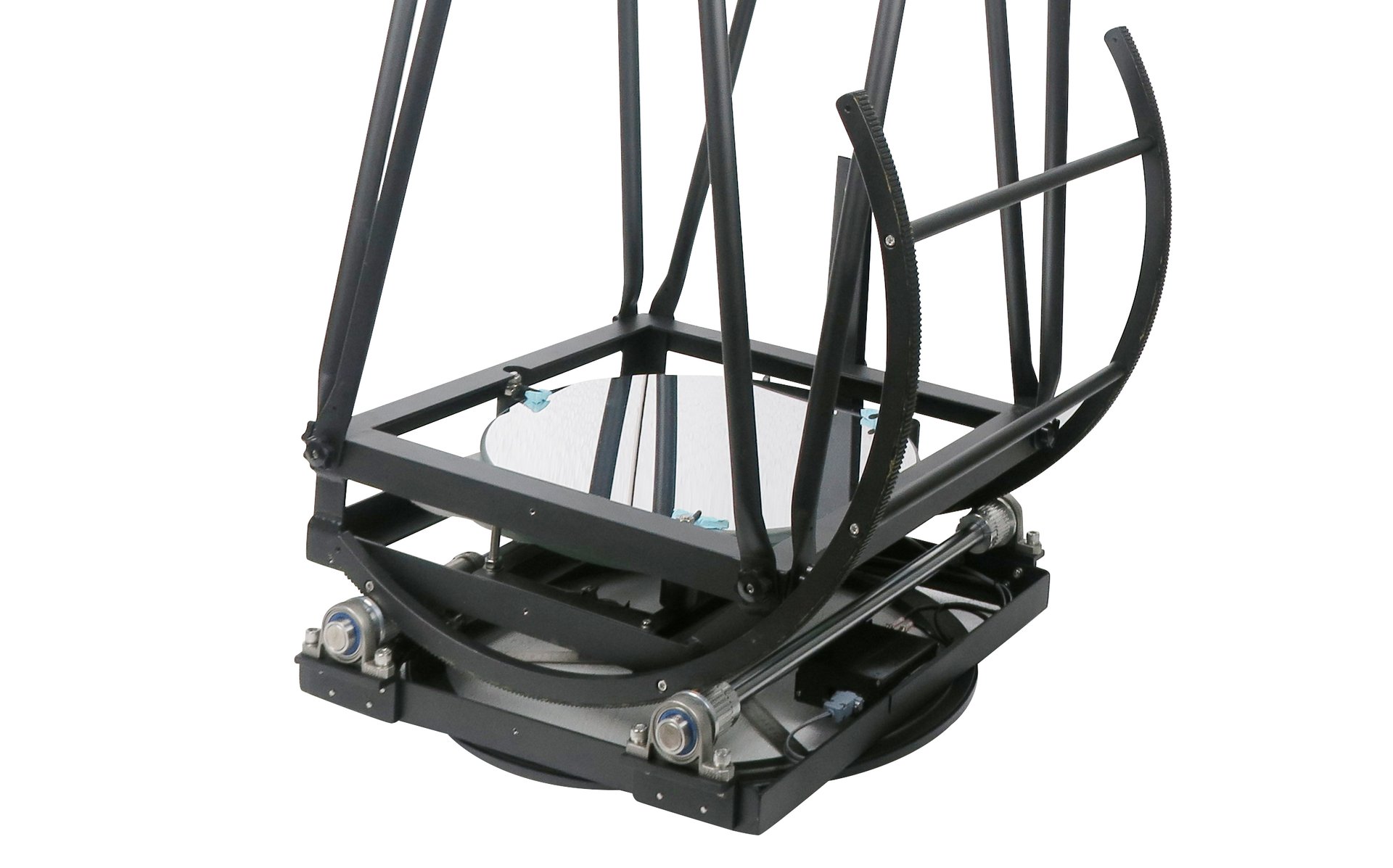

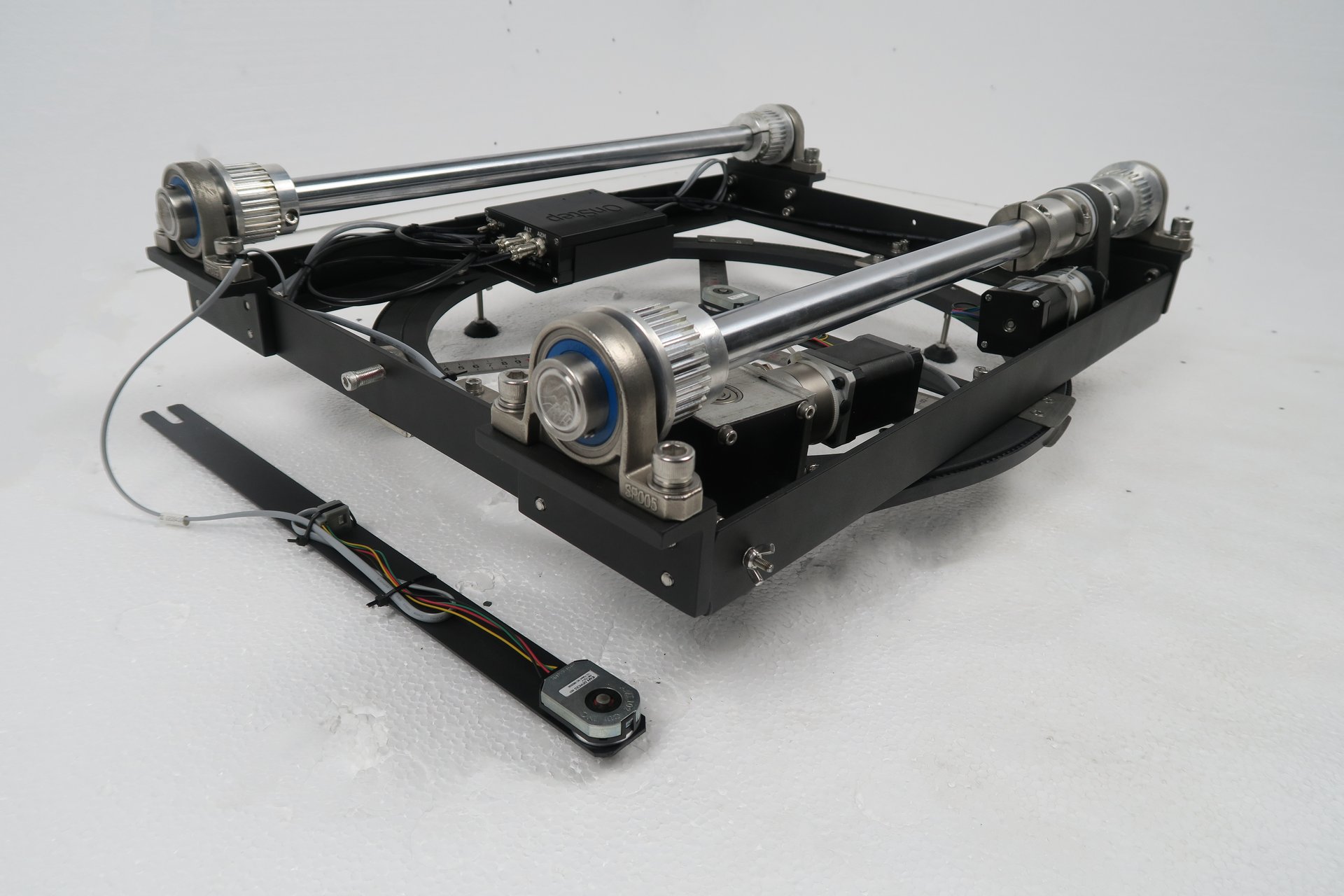

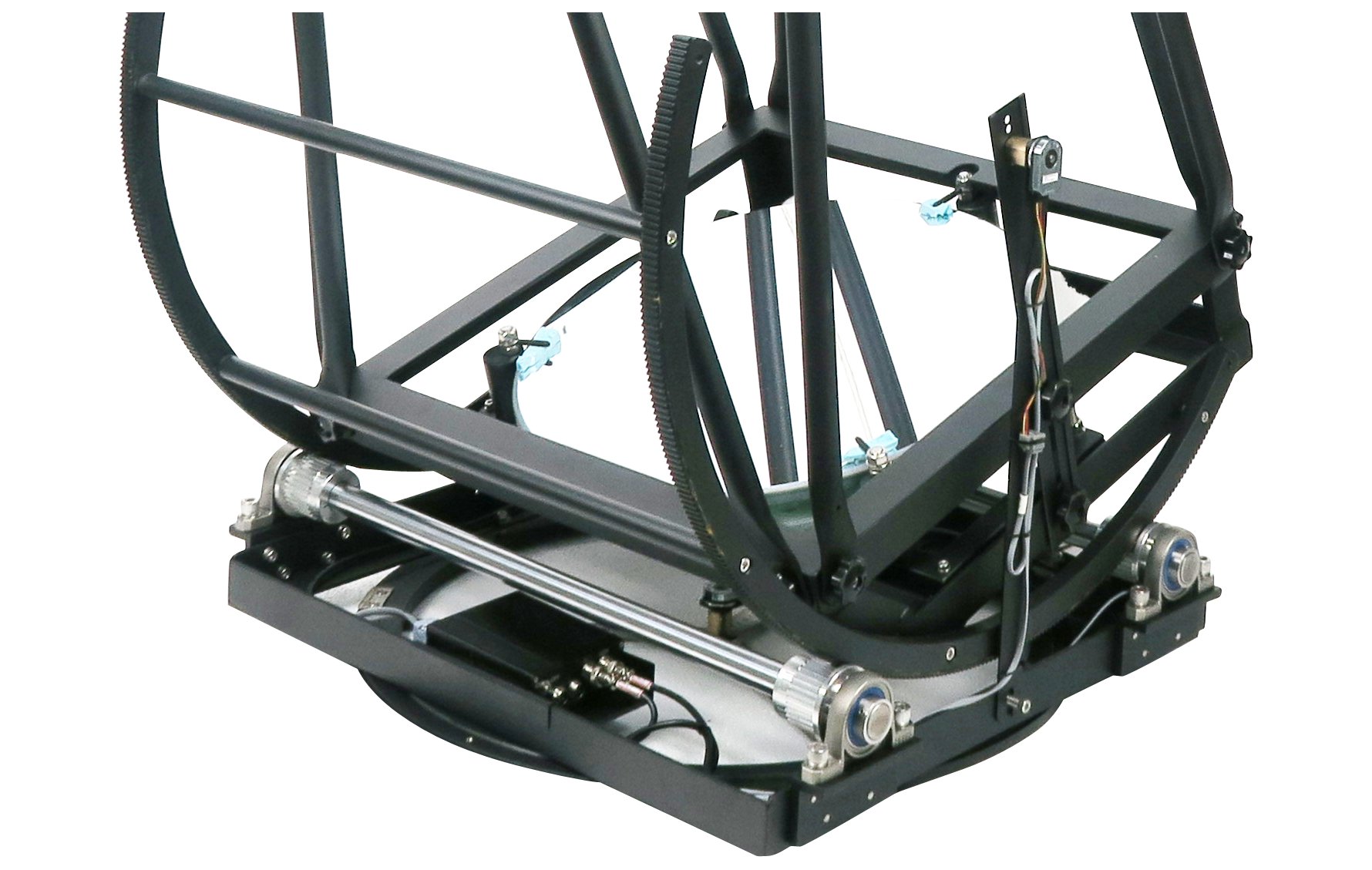

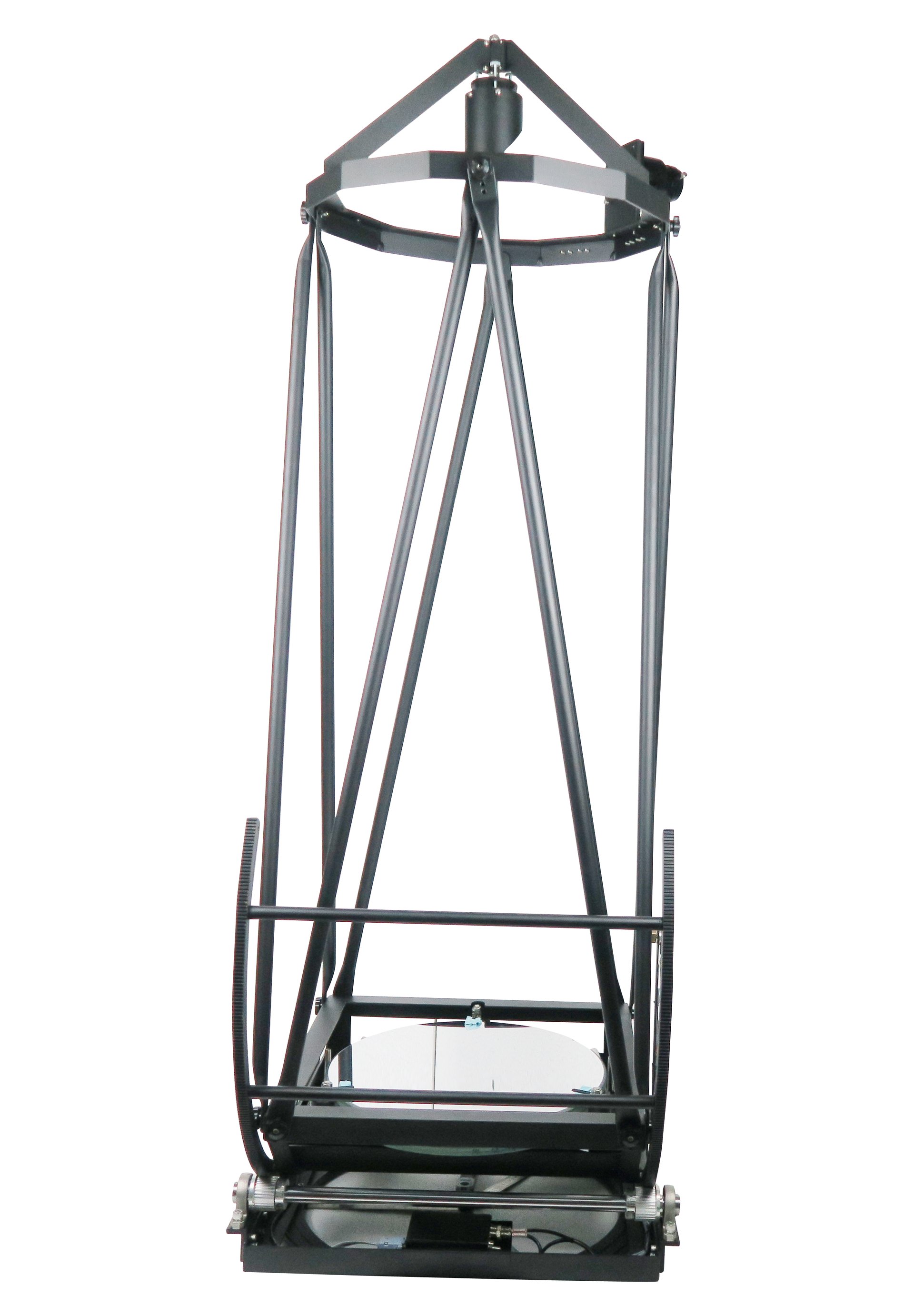

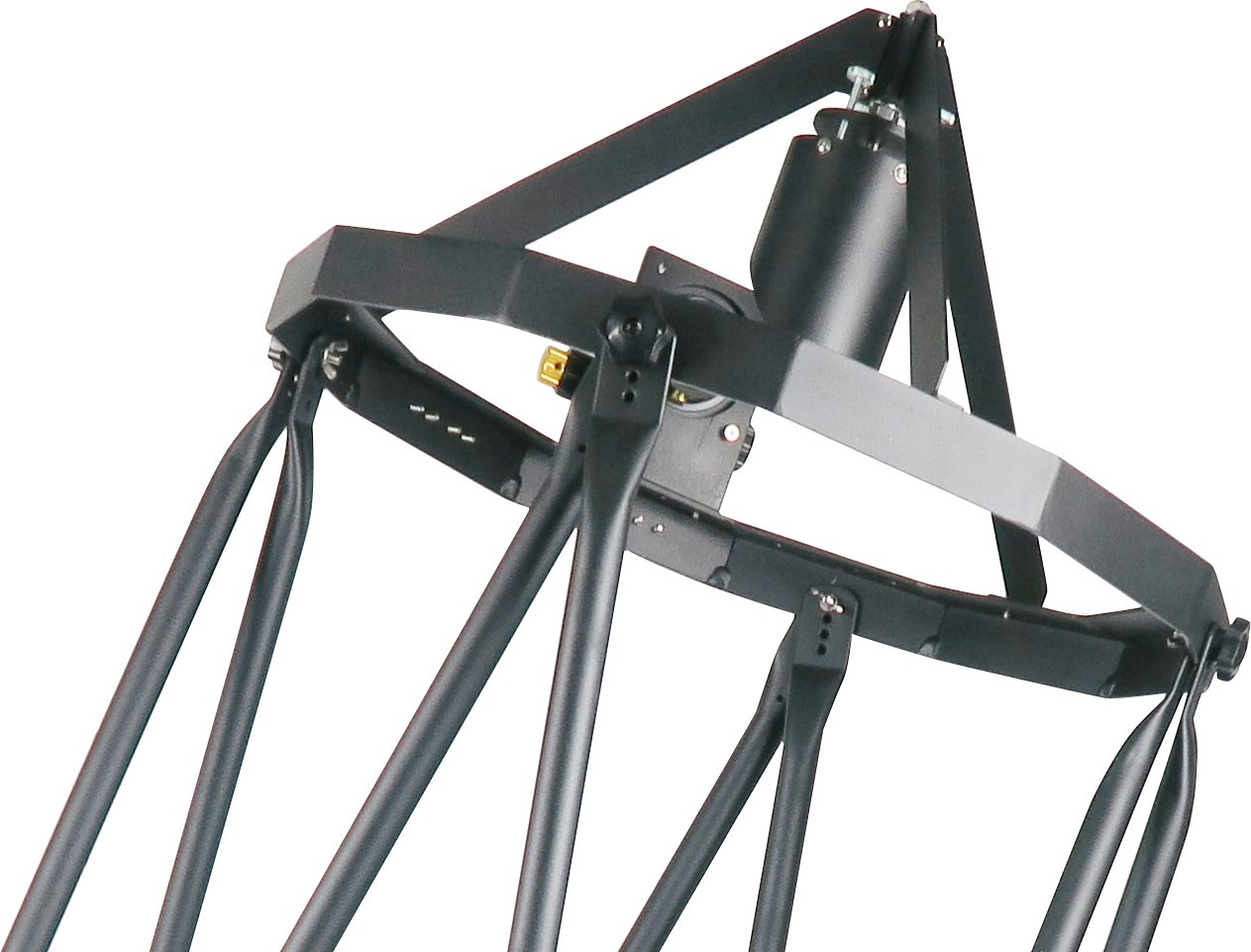

UL18g GoTo telescope rear view UL18g mirror cell closeup UL18g GoTo motor and mount detail UL18g GoTo hand controller UL18g GoTo encoder and wiring detail UL18g GoTo altitude bearing detail UL18g GoTo azimuth base detail GoTo base and controller detail
Optical Design Reflector
Optical Diameter 457.2mm
Focal Length ~1860mm (f/4), ~2058mm (f/4.5)
Focal Ratio f/4, f/4.5
Eyepiece Height at Zenith 68" (f/4), 76" (f/4.5)
Optics Type Parabolic
Optical Quality Diffraction limited++ (Strehl 0.95+, 1/10 lambda PV secondary)
Focuser 2" dual-speed linear bearing Crayford
Secondary Obstruction 90mm / 19.7% (f/4), 80mm / 17.2% (f/4.5)
Mirror Coatings 96% Enhanced on both primary and secondary
Tube Material 6063-T6 Aluminum Alloy, structural steel mirror cell
Optical Tube Length ~72" (f/4), ~79" (f/4.5)
Weight (Tube) 62.0 lbs
Weight (Assembled) ~84.0 lbs
GoTo System OnStep with built-in WiFi and Bluetooth
Power Supply 12-15V 2A, 5.5-2.1mm center positive
Dawes Limit 0.25 arcsec
Rayleigh Limit 0.30 arcsec
Limiting Magnitude 15.8
Max Magnification 900x
Accessories 8x50 Finder, Shroud, Wheelbarrow, Cushioned Grips (optional)
Other Features Sling lateral support, push-pull brass knob collimation

Advantages of f/4.5

Sharper images with about 40% less coma — no coma corrector needed at all. Smaller central obstruction (3.1" vs 3.5" for f/4). Easier to achieve perfect collimation. And you save $500.

Advantages of f/4

No ladder needed for most people — the eyepiece stays conveniently close to the ground. Wider field of view for sweeping panoramic observations.

Both f/4 and f/4.5 provide excellent views. The f/4.5 is perfect for the most demanding observer without a coma corrector. The f/4 provides a wonderful wider view. With our unique two-section truss tubes for f/4.5, both are equally portable and strong. Please note that some counter weight will be required for f/4.5 at the bottom (not provided).

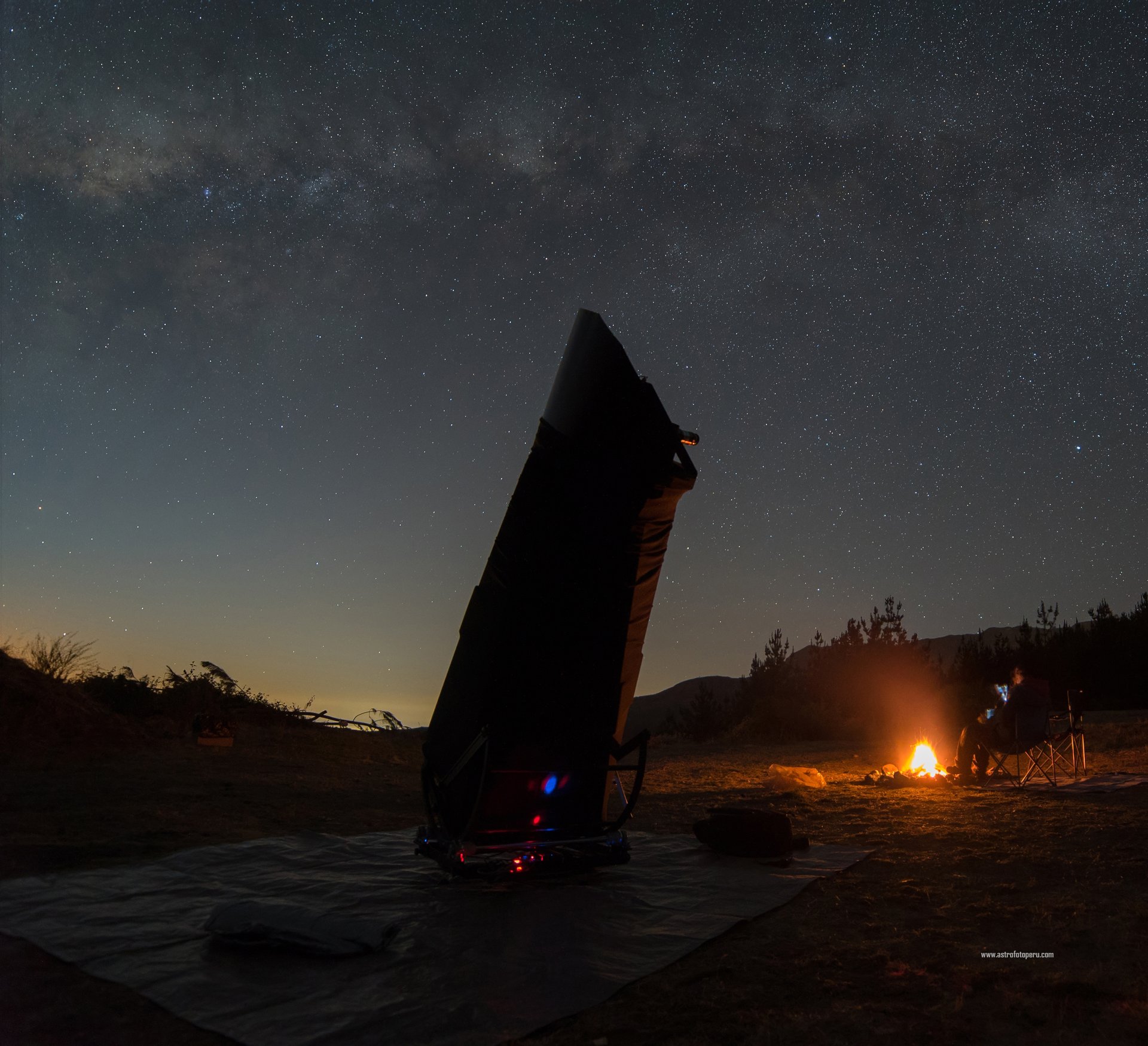

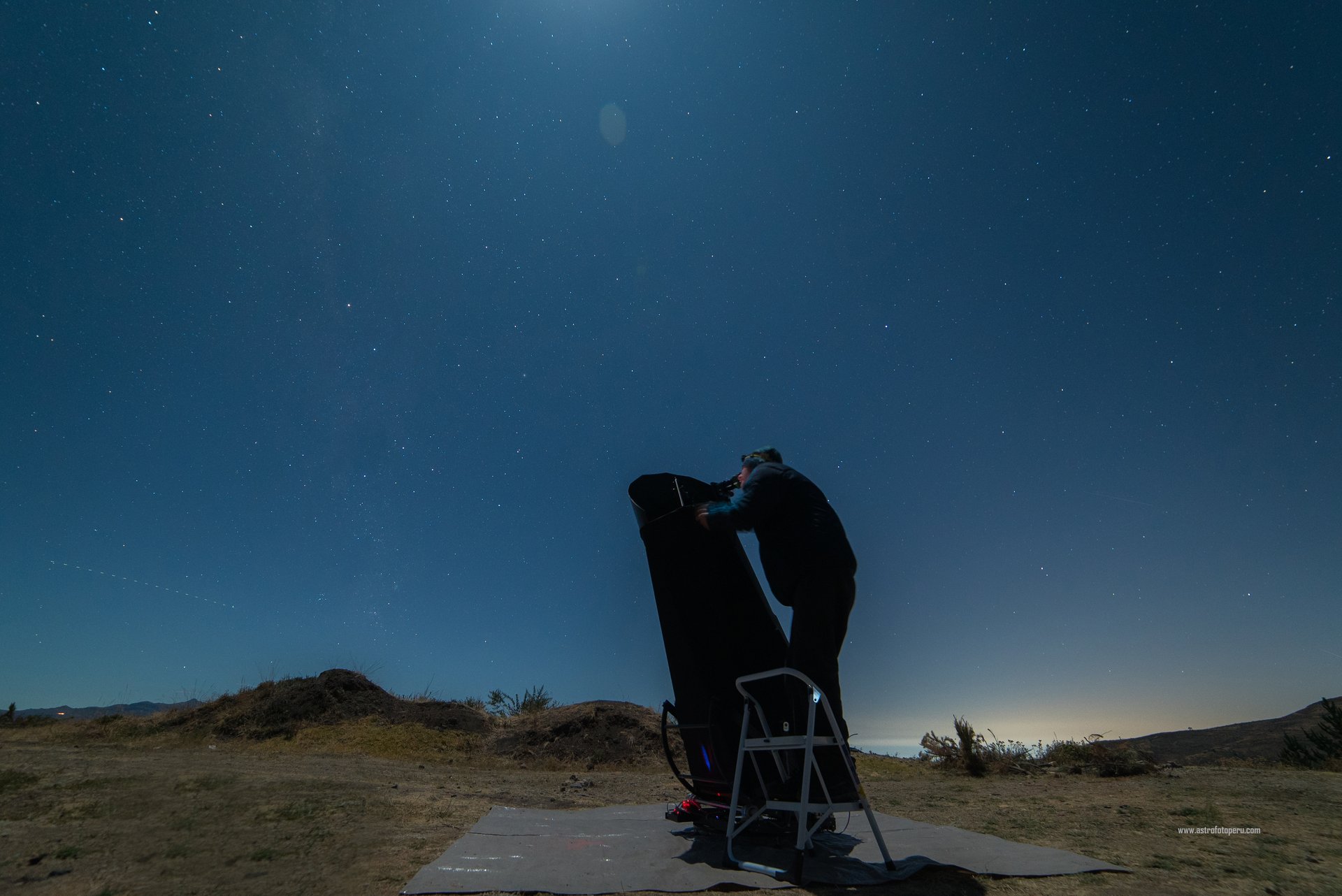

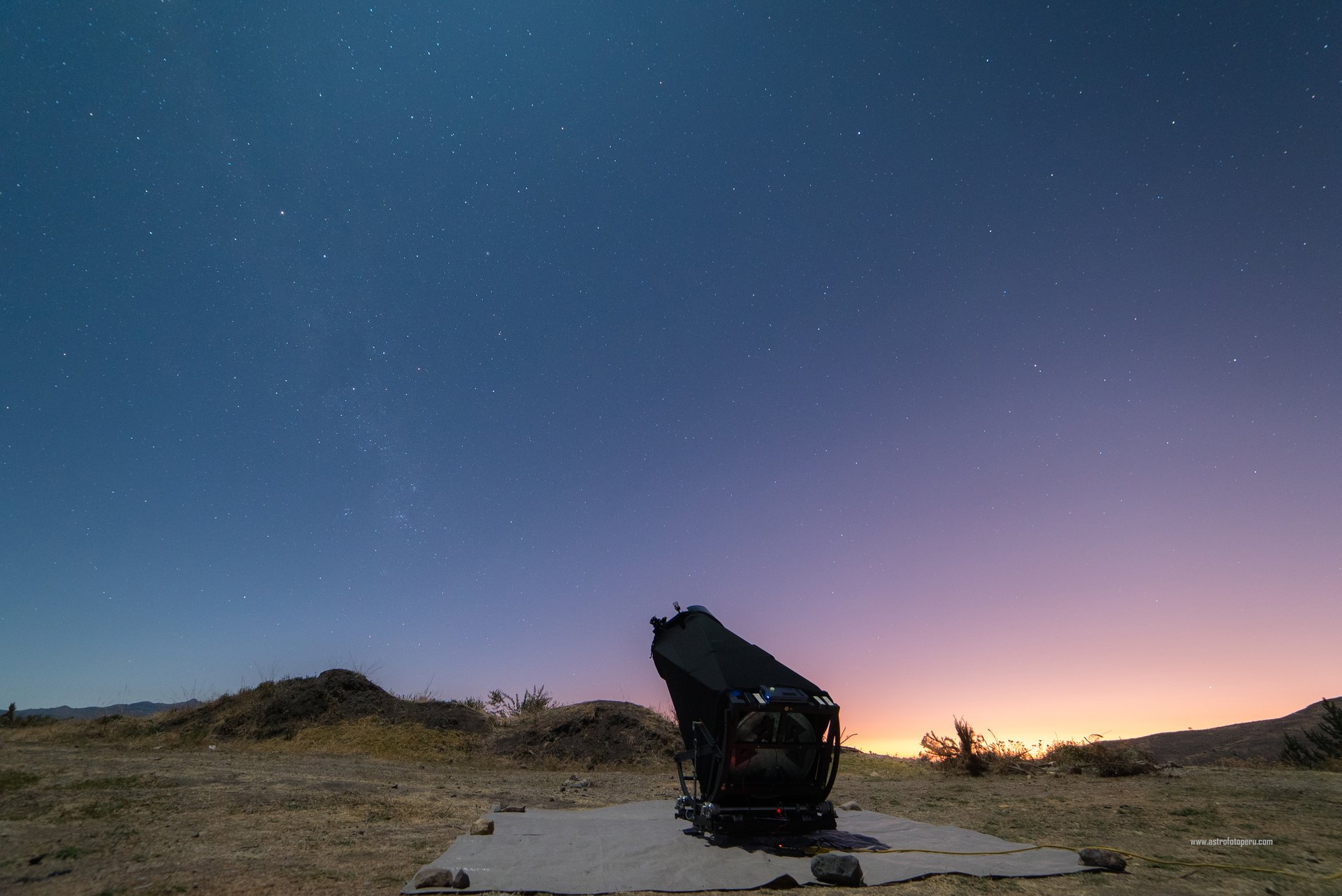

Bill Porte's His-n-Her's UL18s in the Sierra Nevada Mountains Rick and Peg's His-n-Her's UL18s at Okie-Tex Star Party Dan Shiner's UL18 at Cherry Springs Star Party 2019 Guillermo Spiers at the eyepiece of his UL18G — Peru, 2025 Pre-dawn over Peru — the UL18G under the Milky Way Guillermo and his partner with their UL18G under the southern stars Night sky view from Peru observing site

Add these when ordering, or contact us at info@hubble-optics.com

View all 12 accessories

Carbon Fiber Truss Tubes

$800

Elegant, stronger, and lighter Carbon Fiber Truss Tubes.

Red Dot Finder Scope

$45

Light weight Red Dot Finder with brackets and dovetail. Simple, effective, and easy to adjust. Free shipping with system.

8x50 Illuminated Finder Scope

$100

Top quality 50mm achromatic finder with dovetail bracket. Scale markings and adjustable red illumination. +$25 shipping.

Truss Tube Grips

$7 each

0.9m cushioned vinyl foam grips — insulate, cushion vibration, and protect the truss tubes. Free shipping with system.

Shroud

$120

Top quality Nylon/Lycra blend. Blocks stray light for better contrast. Free shipping with system.

Wheelbarrow Handle

$250

Stainless steel handles with two 6" pneumatic tires and ball bearings. Includes $100 shipping. Order with system only.

Truss Tube Carry Bag

$60

Deluxe waterproof Nylon bag with draw-string cord. Free shipping with system.

5-Star Artificial Star

$22

Essential collimation tool. Free shipping when ordered with system.

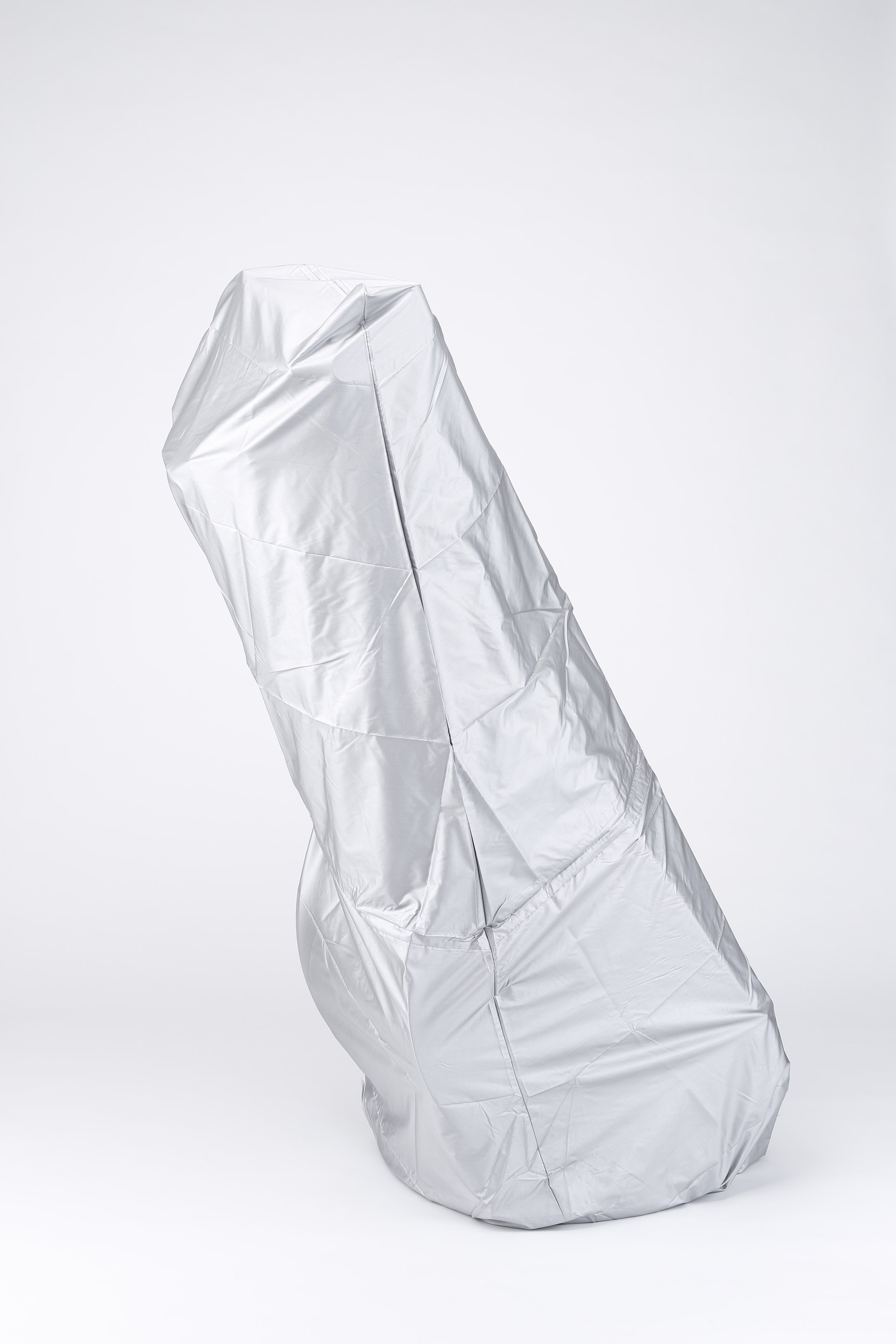

Scope Storage Cover

$120

Polyurethane-coated nylon — light reflecting, water and dust resistant. Full protection in storage and in the field. Free shipping with system.

Mirror Cover

$45

Strong plastic mirror cover. Free shipping with system.

12V Battery Holder

$30

Steel battery holder for the GoTo system. Free shipping with system.

Light Baffle

$50

Reduces stray light for improved contrast. Free shipping with system.

No fan needed — our sandwich mirror reaches thermal equilibrium without one.

There's a 50% deposit for the base system, and the full payment for the optional accessories at the order time. The rest including shipping will be paid before the delivery (about 60 days after the deposit) via a PayPal invoice. UL18g will be shipped in 4 boxes: the main structure 1 & 2, the truss tubes and the primary mirror.
Country Regular (US$)
US 870
US (Hawaii) 920
Australia 1017 (EMS)
Austria 720
Belgium 770
Brazil 2350*
Canada 826
Chile 992
Denmark 765
France 790
Germany 780
Israel 860
Italy 710
Japan 510
Korea, South 510
Lithuania 1660
Mexico 905
Netherlands 710
New Zealand 830
Norway 800
Philippines 415
Poland 785
Portugal 905
Romania 880
Russia 1220
Singapore 425
South Africa 1005
Spain 830
Sweden 780
Switzerland 775
Taiwan 480
UK 800

* Shipped via FedEx, the exact cost depends on your specific address.
